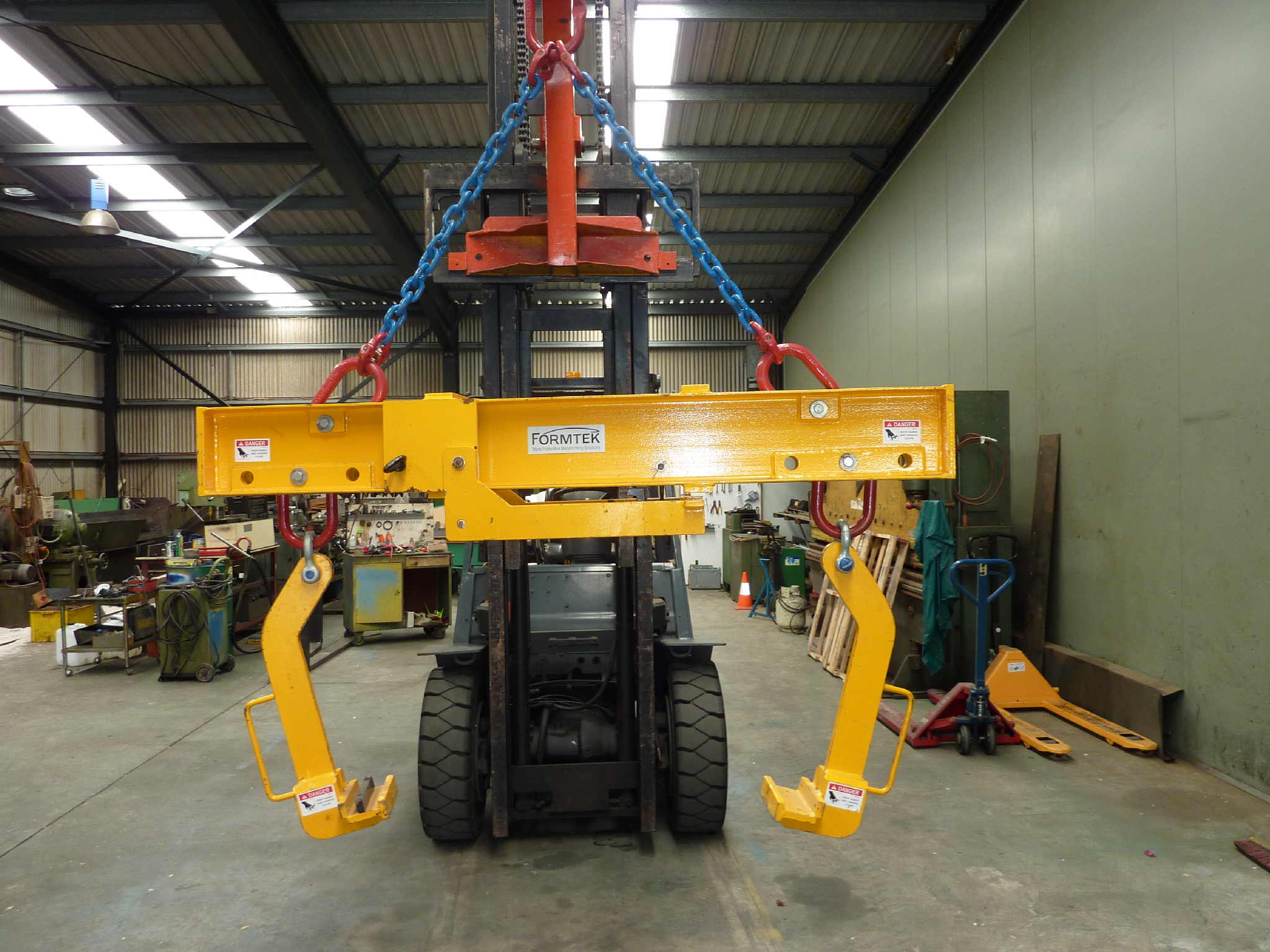

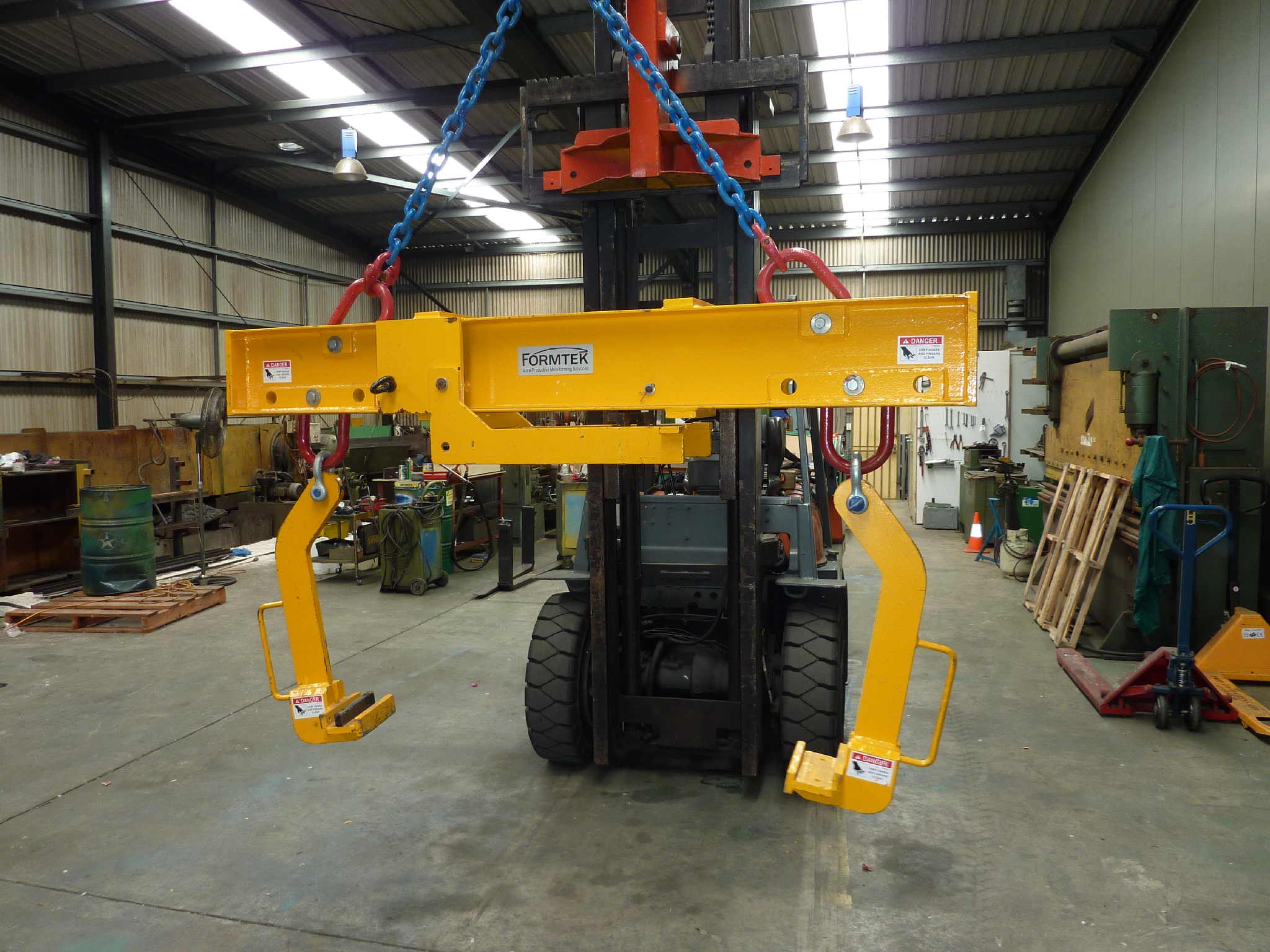

Formtek Mansaver for Overhead Cranes for Jibbed Forklifts

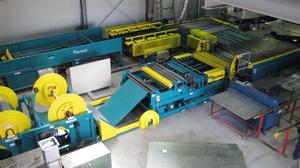

Formtek Iowa Precision Industries Pro Fabriduct coil processing duct line complete to the following specifications:
4 x 1525mm x 5 tonne Decoilers featuring individual hydraulic drives with hydraulic hold down arms
- Bottom pay off via auto grid feed to auto select station and infeed table to processor.
- Pro Ductomatic processor unit to 1525 x 1.6mm material and features SMACNA beader.
- Notching heads for drive cleat, TDC/TDF, Pittsburgh and Snaplock.
- Hydraulic shear cut off and forming head for male Pittsburgh and Snaplock.
- 3 metre transfer table to female Pittsburgh station.
- Mark-XV rollforming station for Pittsburgh and Snaplock female seams.
- 3 metre transfer conveyor and positioning to TDC/TDF forming station.
- 14 station TDC/TDF Duplex rollformer for 35mm flange.
- Feed table to wrap brake.
- Wrap brake and 3 metre runout table.
- CNC fully programmable touch screed from centrally located control console.
- Line offered and U shape configuration and occupy floor space approximately 6.8m x 16m. You to advise whether line to run right hand U or left hand U direction.
- Power requirements: 125amp, 415v, 50Hz
- Air requirements: 15cfm at 90psi.
